Single coil antennae
Single coil antennae are suitable for applications where small to medium readranges are required. Different formats and shapes like pencil, panel or loop antennae are available. Also not of the shelve customized shaped antennae to your needs can be made.
ANT613
- Dimensions: ø18 x 165mm
- Weight: 60g
- Protection: IP65
- Material: POM
ANT613S-18
ANT613S-20
- Dimensions: ø18 x 80mm
- Dimensions: ø20 x 80mm
- Weight: 50g
- Protection: IP65
- Material: POM

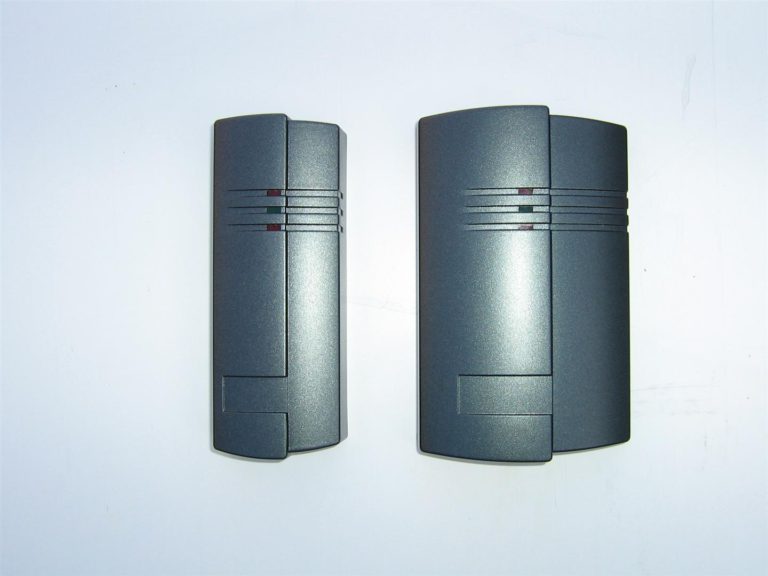

ANT614S
- Dimensions: 120x45x23mm
- Weight: ca. 140 Gram
- Protection: IP54 or IP67
Download ANT614S brochure here
ANT614W
- Dimensions: 124x76x23mm
- Weight: ca. 200 Gram
- Protection: IP54 or IP67
Download ANT614W brochure here
ANT615
A ferrite sensor antenna in a ABS housing.
The antenna is standard delivered with a cable length of 2 meters (other length on request)
The antenna has 2 mounting holes.
Applications
- Industrial automation
- Robotics
ANT616
- Click here for the dimension drawing
- Protection: IP68
ANTC40
- Dimensions 100x60x10mm
- Dimensions inside: ø40mm
- Used for birds, mice and all other small animals that pass through the antenna and should be identified by using the ID100
- Protection: IP68
ANTC100
- Dimensions inside: ø100mm
- Used for birds, bats and all other animals that pass through the antenna and should be identified by using the ID100
- Protection: IP68
ANTC200, example of custom made antenna
- Dimensions inside: ø195mm
- Used for chickens, bats, birds, fish and all other small animals that pass through the antenna and should be identified by using the ID100
- Protection: IP68
ANTSQR300
- Dimensions outside: 300x300mm
- Used for the identification of animals like chickens, birds, fish and other parts in logistics that pass through the antenna.
- Protection: IP68
- Other dimensions are available on request
ANTCUBE400
- Inside dimensions: 400x400x400mm
- Used for the identification of animals like chickens, birds, fish and other parts in logistics that pass through the antenna.
- Protection: IP68
- Other dimensions are available on request
ANTSQR500
- high density polyethylene housing, optional full moulded with polyurethane.
- Easy mounting using flanges.
- IP68 version available for full submersion.
- ID-100 transponders detected everywhere in the opening.
- The antenna is delivered with a 4 meter industrial antenna cable
Download the ANTSQR500 brochure here
ANTCUSTOM, example of custom made antenna
- Dimensions aprox. 150x30cm
- Used for the identification of vehicles
- Protection: IP67
Multiple coil antennae
Multiple coil antennae are suitable for applications where maximum reading distance is required. Antennae are available in different formats and shapes.
ANT610F
- Dimensions: 225 x 177 x 31 mm
- Weight: approx. 0,5 kg
(IP68 approx. 1,5Kg) - Material: High impact polystyrene (HIPS)
- Colour according RAL7016, UL94-V0
- Protection: IP54
- Standard cable length: 4 meter
Optional:
- Connector connection at antenna
- IP68 moulded for under water use on request,
- order code ANT610F-IP68
ANT611
- Dimensions: ø50 x 165mm
- Weight: 0,5 kg
- Protection: IP65
- Material: POM
Optional:
- curly cable
ANT612
- Dimensions: 475 x 400 x 40 mm
- Weight: approx. 3Kg
- (IP68 approx. 8Kg)
- Material: High impact polystyrene (HIPS)
- Colour according RAL7016, UL94-V0
- Protection: IP65
- Standard cable length: 4 meter
Optional:
- Connector connection at antenna
- IP68 moulded for under water use on request, order code ANT612-IP68
