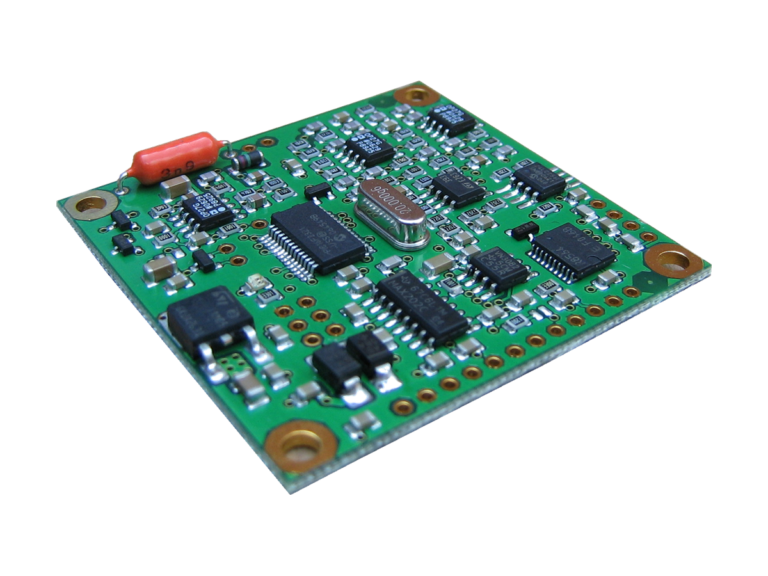

LID665 series

small OEM decoder for use with single coil antenna and proximity readrange. RS232 and RS485 interface. Different firmware versions to support any kind of application. Can also be delivered complete with powersupply, housing, cables etc. to customer needs.

The LID665 OEM decoder is designed for use with single coil antenna only.

The user can for example use this decoder as a plug-in board on his own designed backplane or as add-on decoder on a handheld computer.

The user can design its own special antenna or use a standard single coil antennae like the ANT614OEM, ANT614 and ANT613. Special antennae
can be made on request. The reading distance depends on shape of antenna and used transponder type.

If a larger reading distance is required the LID650 decoder together with the TM613 singlecoil antenna driver should be used instead of the LID665 decoder.

Based on the firmware there are 4 versions available:

  • LID665:
    Standard version with ASCII RS232 protocol. On single point connection also the RS485 interface can be used for long cable distances using the ASCII protocol
  • LID665N:
    Networkable version using the RS485 2-wire bus system. Protocol in HEX format incl. addressing of the decoder. Same protocol can also be used on the RS232 interface when using single decoders on a short distance.
  • LID665-MULTI:
    The LID665-Multi decoder reads also the FDX-B ISO standard and EM4102 transponders. The communication protocol for RS232 and RS485 are the same, so only one order code.
  • LID665A:
    Special firmware version for use in access control applications. Is a networkable version using the RS485 2-wire bus system. Works together with our Trovan® Access Guard PC software. Also the RS232 interface can be used on single decoders on a short distance.

Features:

  • Dual power supply input: 5Vdc +/-5% or 7,5Vdc-30Vdc
  • Dimensions: 50 x 51 x 8 mm
  • Weight: approx. 20gr.
  • RS232 and RS485 interface, 1200…..19200 baud
  • 256kb EEprom for data storage, 6400 slots without data/time stamp, 3200 with data/time stamp.
  • Output for buzzer and LED indication
  • Windows XP/7 PC software with Dbase function for access control applications
  • Realtime clock/calendar

Options:

  • Lithium battery backup to keep clock-calendar running when powered off
  • 512kb EEprom to store 12800 ID numbers without and 6400 with date and time
  • 1024kb EEprom to store 25600 ID numbers without and 12800 with date and time
  • I2C connection for serial communication
  • Custom specified serial Wiegand/clock-data/Omron protocol
  • backplane with screw connectors, fuses, max. 2 relay outputs, max. 2 inputs, buzzer and optional extra memory.

LID665BP Backplane

For easy connection of the LID665 decoder you can use our backplane that incorporates screw-connectors (powersupply/interface/LED and antenna), fuses, buzzer and a relay output.
Extended memory can be fitted on this board on request.

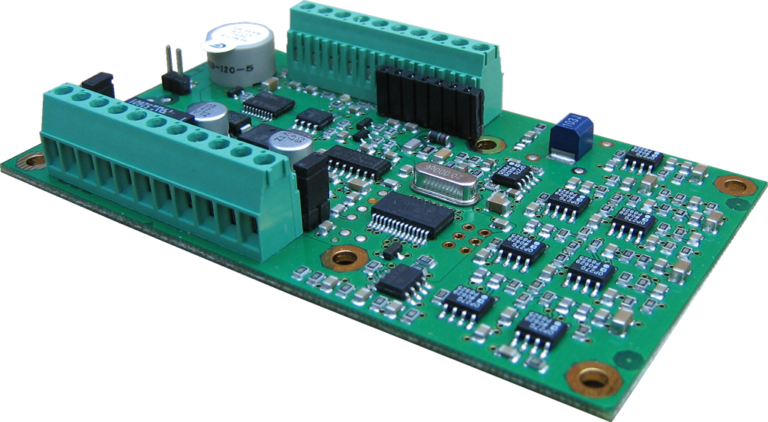

LID650 series

OEM decoder for use with multi and single coil antenna for any kind of readrange. RS232 and RS485 interface. Different firmware versions to support any kind of application where a larger readrange is desired. Can also be delivered complete with powersupply, housing, cables etc. to customer needs.

The LID650 decoder is designed for industrial automation where a larger reading distance is required. Reader activation can be placed under software control, or can be trigger controlled. The LID650 decoder has been designed for use with external multiple coil antennas, such as the ANT610F, 611 and 612. When using the antenna driver TM613 it is also possible to use single coil antenna for enhanced reading performance compared to the LID665. Based on the firmware there are 4 versions available:
  • LID650: Standard version with ASCII RS232 protocol. On single point connection also the RS485 interface can be used for long cable distances using the ASCII protocol
  • LID650N: Networkable version using the RS485 2-wire bus system. Protocol in HEX format incl. addressing of the decoder. Same protocol can also be used on the RS232 interface when using single decoders on a short distance.
  • LID650-MULTI: The LID650-Multi decoder reads also the FDX-B ISO standard and EM4102 transponders. The communication protocol for RS232 and RS485 are the same, so only one order code.
  • LID650A: Special firmware version for use in access control applications. Is a networkable version using the RS485 2-wire bus system. Works together with our Trovan® Access Guard PC software. Also the RS232 interface can be used on single decoders on a short distance.

Features:

  • Needs regulated 12Vdc +/-5% linear powersupply
  • Dimensions: 100 x 58 x 16 mm
  • Weight: approx. 40gr.
  • RS232 and RS485, 1200……19.200 baud
  • Relay output, selectable potential free or 12VDC no/nc
  • Buzzer on board
  • 256kb EEprom for data storage, 6400 slots without data/time stamp, 3200 with data/time stamp.
  • Windows XP/7 PC software with Dbase function for access control applications
  • Realtime clock/calendar
Options:
  • Extra relay output
  • Lithium battery backup to keep clock-calendar running when powered off
  • I2C connection for serial communication
  • 2 TTL lines for custom serial clock-data or wiegand protocol, only when RS485 disabled
  • 512kb EEprom to store 12800 ID numbers without and 6400 with date and time
  • 1024kb EEprom to store 25600 ID numbers without and 12800 with date and time

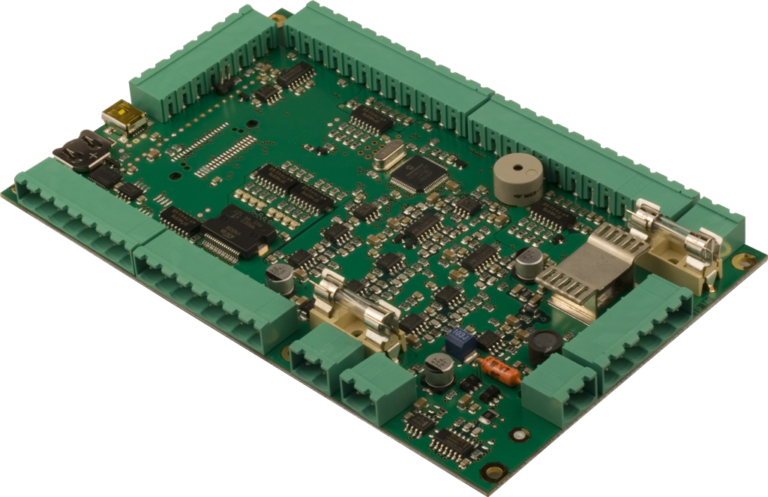

LID608 series

OEM decoder for use with multi and single coil antenna for any kind of readrange. Compared to the LID650 it has also a USB interface, Bluetooth optional and 8 out- and inputs. Can also be delivered complete with powersupply, housing, cables etc. to customer needs.

The new LID608 decoder is designed for industrial automation where a larger reading distance and complete embedded solution is required.
Reader activation can be placed under software control, or can be trigger controlled.
The LID608 decoder has been designed for use with external single- and multiple coil antennas.

Compared to the LID650 the LID608 has also a USB interface, 8 opto coupled inputs, 8 solid state outputs. Output voltage of the solid state outputs is depending on the input voltage connected to the separate input voltage connector.

The LID608 decoder can be used for reading Trovan®, ISO FDX-B and/or HDX* transponders.

Features:

  • Needs regulated 12Vdc +/-5% linear powersupply
  • Dimensions: 160 x 100 x 20 mm
  • USB interface
  • RS232 and RS485 interface
  • 8 solid state outputs
  • 8 opto coupled inputs
  • Buzzer on board
  • 256kb EEprom for data storage, 6400 slots without data/time stamp, 3200 with data/time stamp.
  • Windows XP/7 PC software with Dbase function
  • Realtime clock/calendar

Options:

  • LCD on board
  • Expansion connector for Bluetooth, WiFi* or Zigbee* module
  • I2C connection for serial communication
  • 512kb EEprom to store 12800 ID numbers without and 6400 with date and time
  • 1024kb EEprom to store 25600 ID numbers without and 12800 with date and time

* Future options

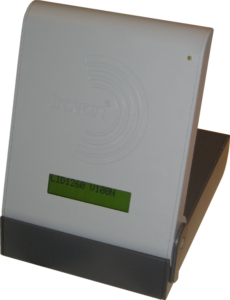

LID1260 desktop reader

Desktop reader incl. large LC Display. Comes with powersupply and standard mains IEC power inlet. RS232 interface for communication with a PC.

The LID1260 is a desk reader that can read all Trovan® transponder types.
It has a large 2×16 character LCD in the front with backlight and a viewing area of 99 x 24 mm.

The LID1260 reader supports our custom name assignment feature. This means that instead of the 10 digit unique hexadecimal ID number a custom code of max. 16 characters can be shown on the second row of the LCD. The link between the Trovan® unique ID number and the custom name can be made by using the PC software.

The created table can be uploaded to the LID1260 reader. If there is not a custom code assigned the normal unique 10 digit hexadecimal code will be shown.

Technical Specifications:

  • Reads Trovan® Unique and Trovan® Flex transponders
  • Up to 20 cm reading distance with the ID100 transponder
  • 220VAC / 50Hz or 110VAC / 60Hz, selectable by voltage selector
  • Standard mains IEC power inlet with on/off switch
  • LCD 2 x 16 characters with backlight, viewing area of 99 x 24 mm
  • Max. dimensions: 29 x 22 x 29 cm
  • Weight: 2,3Kg.
  • RS232, 1200……57.600 baud, Sub-D-9 pin male connector
  • Buzzer on board
  • EEprom for data storage, 5400 slots without data/time stamp, 2900 with data/time stamp.
  • Windows95/98/NT/XP PC software with Dbase function for access control applications

Options (to be specified at order):

  • Wireless Bluetooth connection
  • RS485 2-wire networkable
  • Real-time clock/calendar

LID1262 Pass-By reader

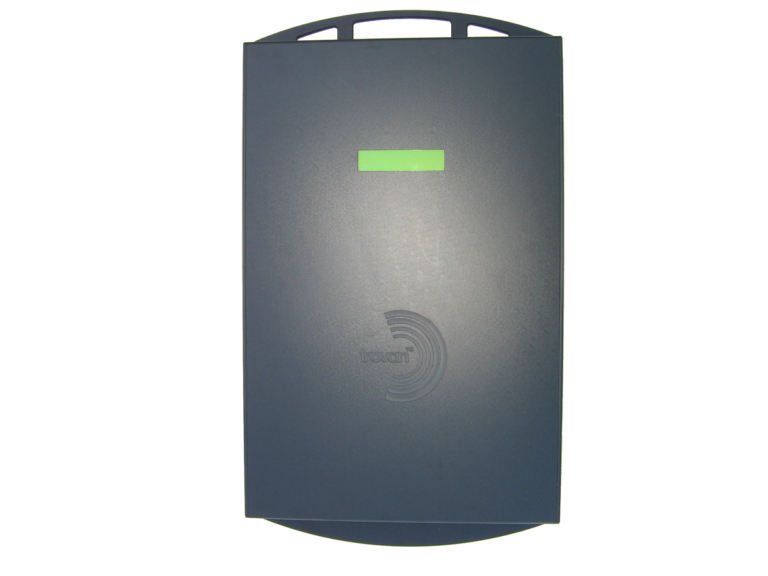

The LID1262 Pass-By panel reader can be used in as in applications that require a large reading distance and visual indication of the tag number.

The LID1262 panel reader can be used in as in applications that require a large reading distance and visual indication of the tag number.

General

This panel reader is making use of a triple coil antenna system for maximum reading performance. The housing is made of High Impact Poly Styrene (HIPS). A large 2 line LC Display is integrated. It is possible to assign custom names to the ID numbers via the accompanying software. The LCD has a backlight so even in dark environments the display can be read easily.

Connections

  • RS232 communication port. (optional RS485 or Ethernet are possible)
  • 110 or 220 VAC power supply
  • Internal relay available to generate additional audio or visible indication.

Maximum reading distance

Transponder typeReading distance (cm)*
ID10035
ID20050
ID30040
ID40080

*Maximum readings in noise free environment

Dimensions: Max.665x373x56mm

Weight: ca. 5 kg
Protection: IP60
Material: High Impact Poly Styrene
Colour according to RAL7016.

UL94-V0 RoHS compliant

Accessoires

Selection of available accessories for the different kind of stationairy decoders

TM613 antenna driver

The TM613 antenna driver board is necessary for connecting a single coil antenna to the LID650 decoder

The TM613 antenna driver board is necessary if you want to use the LID650 decoder in conjunction with a a single coil antenna.

The TM613 board will be mounted on top of LID650 decoder. Both boards are being connected through headers pins, so no extra wires have to be used.

The TM613 antenne driver can be used in applications, in conjunction with a single coil antenna, where a maximum reading distance and reading speed is required.

TM613-4 multiplexed

The TM613-4 multiplexed antenna driver board is specially designed for connecting upto 4 single coil antennae to one LID650 decoder

The TM613-4 multiplexed antenna driver board is specially designed for connecting upto 4 single coil antennae to one LID650 decoder. The LID650 decoder can be mounted on top of the TM613-4 driver board.

The TM613-4 multi antenna driver can be used for this projects where no maximum reading speed is required. The decoder will trigger the 4 antennas one after the other and will keep track of the ID’s in the different antenna fields.

The TM613-4 has also a 24VDC powersupply input which gives to ability to connect a LID650 decoder to a 24VDC powersupply.

Applications

All applications where more reading points are required in industrie and maximum reading speed is not required.

Technical specifications

Dimensions TM613-4 board only

Supply Voltage14,5-24Volt dc
100 x 100 x 17mm

Optional

  • DIN Rail mountable (See also image of pcb in DIN Rail module)
  • Expension port for optional connections like Bluetooth or WiFi module

USB Logger

The USB logger can be used to connect to the RS485 stationairy decoder network and will collect all data communication on a USB stick in a CSV format with local date and time stamp.

General

The USB data logger can be used to store large amounts of data on a USB Stick (Millions of records). The logger is connected via the RS485 port to a LID608, LID650 or LID665 decoder. All ID numbers transmitted by the decoder are read by the data logger, date/time stamped and stored on the USB stick. The Unit address and the baud rate of the data logger can be set by using DIP switches.

The datalogger has LED indications for power, Rx & Tx communication and for Storage active (becomes active when a USB stick is inserted).

A pushbutton to savely remove the USB stick is located next to the USB stick.

The logger is recognized by the PC software of the LID650/LID665. Date and time are set via this software. Each day the logger creates automatically a file (CSV format).

Also there are 2 inputs available. One analogue for monitoring for example the battery voltage. Second input is a digital input that can be programmed to meet special customer requirements.

Applications

All applications that require to store a large amount of data.

Technical specifications

Supply Voltage7-12Volt dc
Memory capacityDepending on size of USB Stick.(1G USB Stick will store approx. 18.000.000 codes with date & time)
CommunicationRS485 for logging. RS232 for connecting GPRS modem.
Visual indicationTx & Rx data led. Storing data, power.
Audio indicationNo
Inputs1 analogue input 0-24VDC, 1 digital pull-down
Date-timeRTC with Li-battery backup.
Dimensions100 x 100 x ? mm (depending on type of USB Stick)
  • Optional
  • DIN Rail mountable (See also image of logger in DIN Rail module)
  • GPRS modem connection to send data on a webserver.
  • Expension port for optional connections like Bluetooth or WiFi module
